A Crown for Integrators.

Something for the Integrators

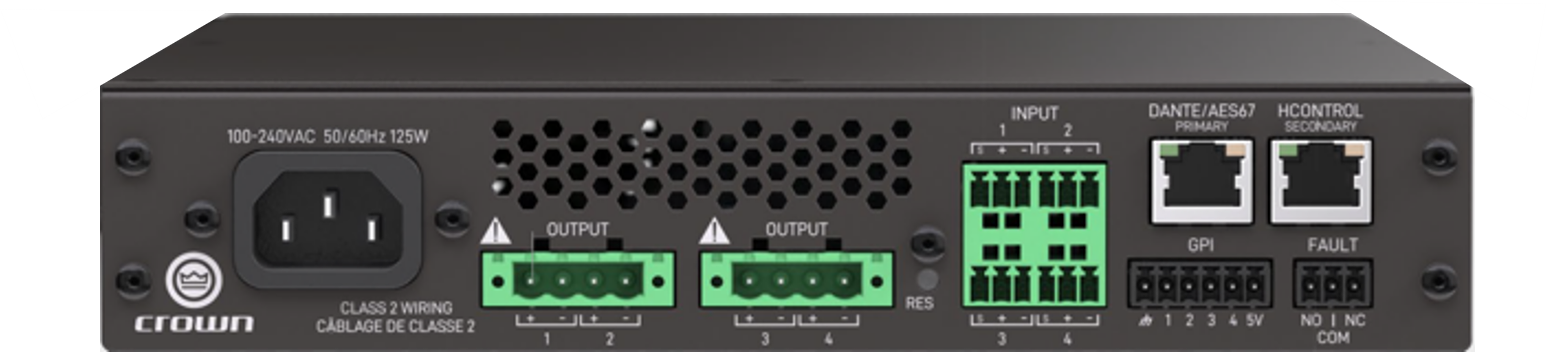

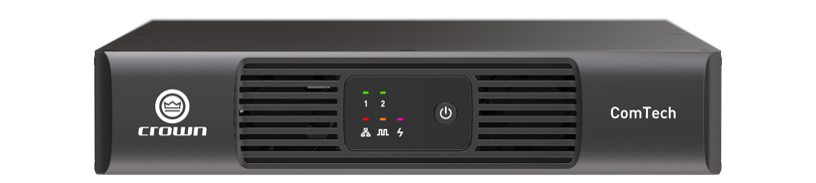

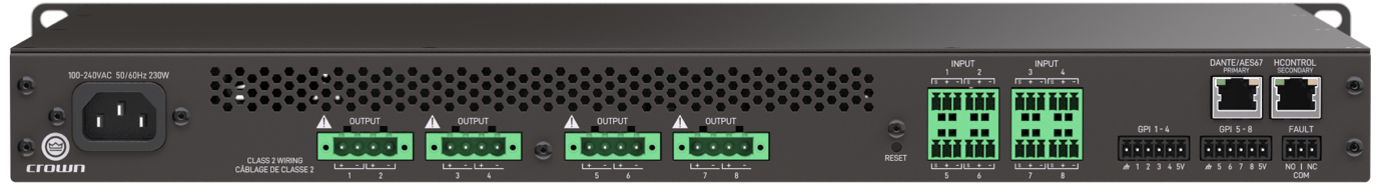

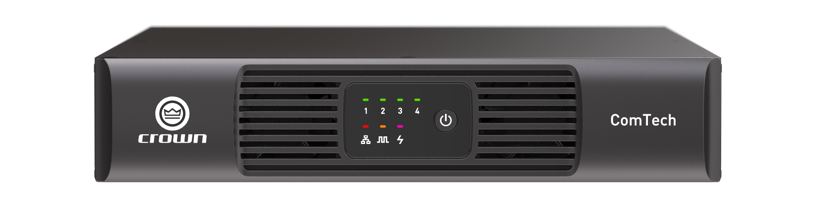

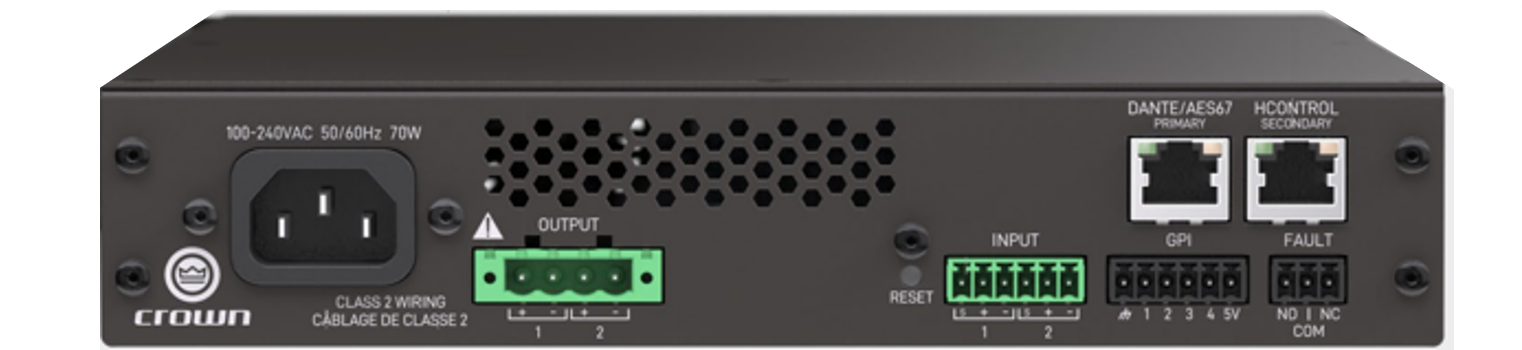

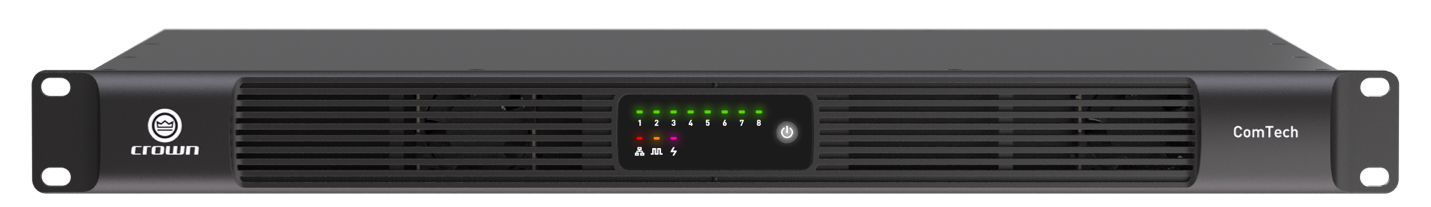

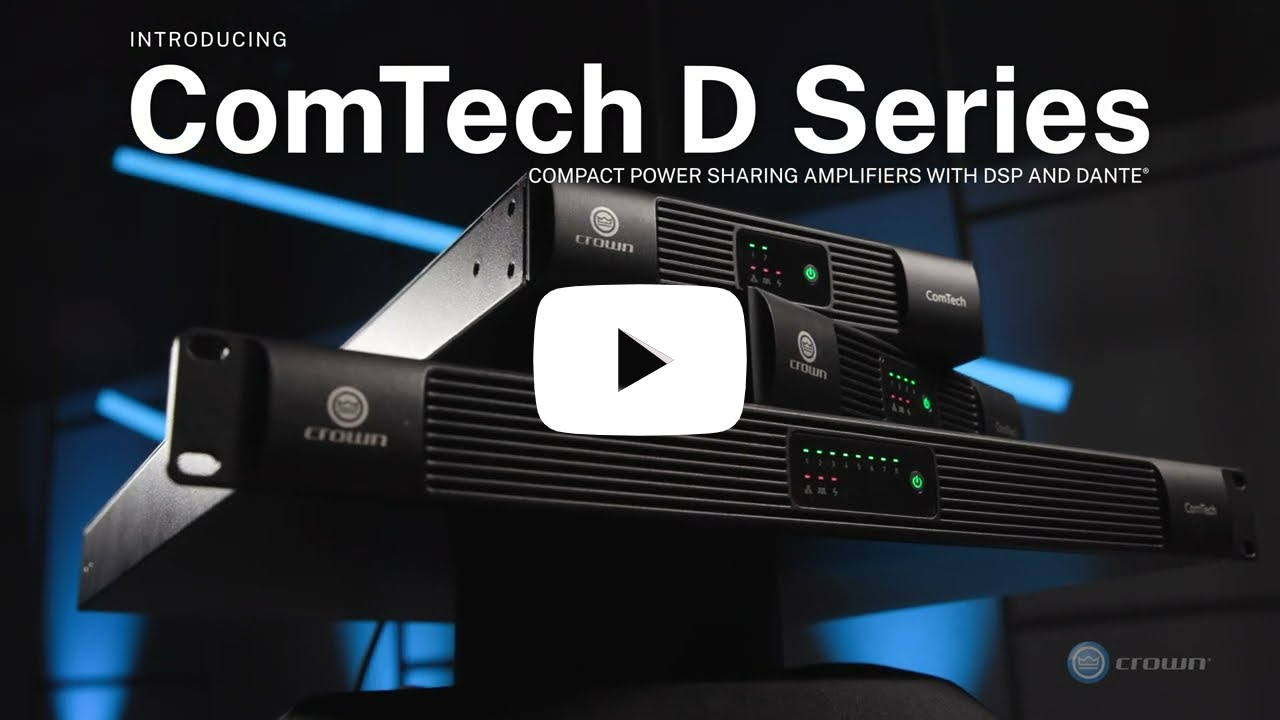

Could have called it DUH Series Represented by: Crown ComTech D Series Power Sharing Amplifiers with DSP and Dante The Crown ComTech D Series is a family of compact, multi-channel amplifiers with Dante I/O and Analog inputs, built-in DSP, Power Sharing, and Lo-Z/Hi-Z switching capabilities. All models can be configured through their simple Web UI and can be monitored using Harman AVX Manager. CTD-2125 - 2 Ch, 125W per Output -  4/8Ω, 70/100V Sharing 250W across 2 channels CTD-4125 - 4 Ch, 125W per Output -  4/8Ω, 70/100V Sharing 500W across 4 channels CTD-8125 - 8 Ch, 125W per Output -  4/8Ω, 70/100V Ch 1-4 Sharing 500W across 4 channels  Ch 5-8 Sharing 500W across 4 channels Web UI Interface • No software required to be downloaded and installed • Can be accessed via PC/MAC/TABLET or any Browser AVX Manager • For multiple device discovery • Quick and easy network setup • Firmware update • Error Reporting • Launch of Web UI Amplifier Health Monitoring • Power Supply Fault •Thermal Warning • Network/Dante/Health LED • Software-to-Device “Locate” function (All LEDs Flashing) Pilot Tone & Load Monitoring • Ensures Line Integrity • Incoming Pilot Tone Detector & Remover • Pilot Tone-Based Source Priority • Output Pilot Tone Generator • Output Impedance Monitoring External Control •Text Based API (for 3rd-Party Control) • AMX/Crestron Module (TBC) • GPI • 4x GPI (CTD-2125 & CTD-4125) • 8x GPI (CTD-8125) • AC-5S (Scene/Source select) • AC-V (Volume Control) • Contact Closure • Mute/Unmute • Sleep/Wake up Device • GPO (Fault Relay Output) • AC Power Lost • Incoming Pilot Tone Fault • Load Monitoring Fault • Power Supply Fault • Thermal Fault Built-in DSP for Room Tuning • 6 Bands PEQ • 100ms Time Delay per output channel  Speaker Tuning • Crossover (HPF & LPF) • 10 Bands PEQ •512 taps FIR Filter •10ms Time Delay • LevelMax Limiter • JBL Speaker Tunings • Control 400 Series • Control 20 Surface Mount Series • Others to be added Scene Presets • Up to 40 Scene Presets can be stored • Scenes can be trigger via GPI, API, or HControl • User can pick the parameter to be stored • Analog & Dante Input (Parameters) • Gain/Trim • Mute • HPF • Output (Parameters) • Source • Gain • Mute • PEQ • Delay • Polarity • Tuning 3 Network Mode • Split Mode • Redundant Mode • Switch Mode Mounting Accessories (CTD-2125 & CTD-4125) • Rubber Feet for table-top installations • Rack Ear & Half Rack Extension Ear for Single Unit Rack Mounting • Bottom Mounting Plate • Combine 2 Half-Width in a 1 RU Space • Under Table Mount • Wall Mount • Rear Support • x1 for CTD-2125 & CTD-4125 • x2 for CTD-8125
